Description

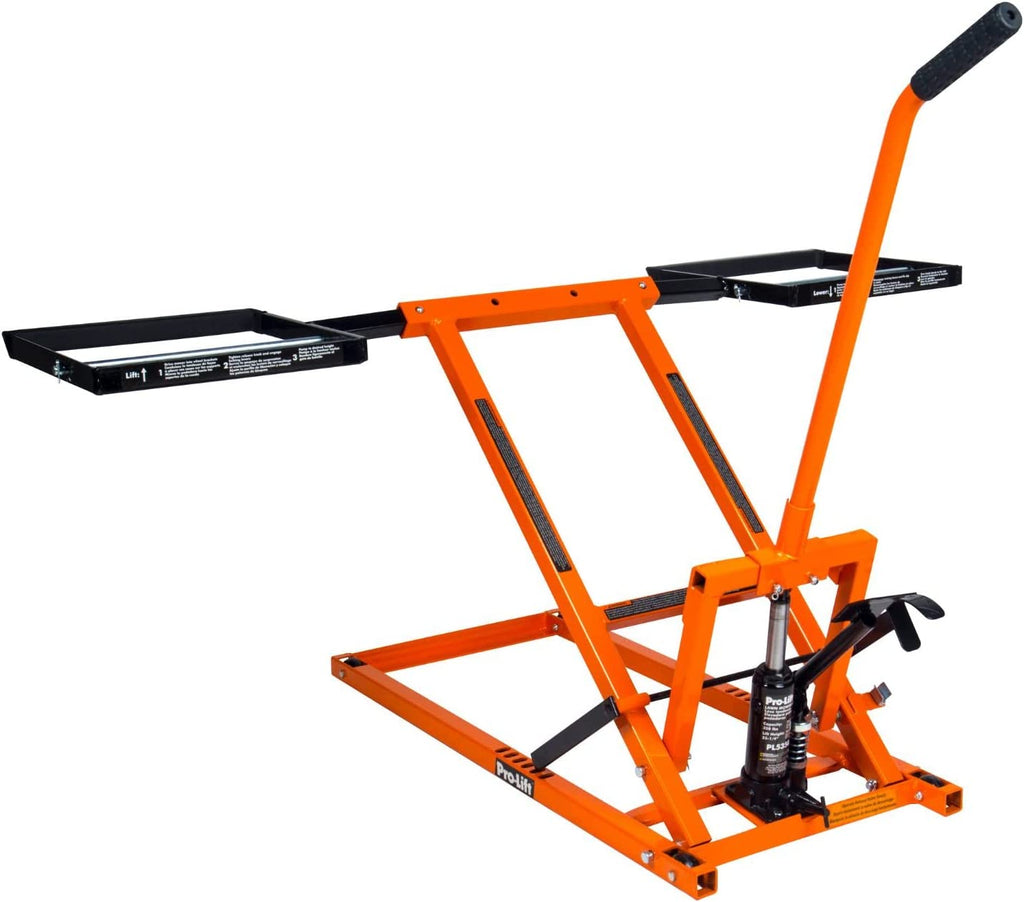

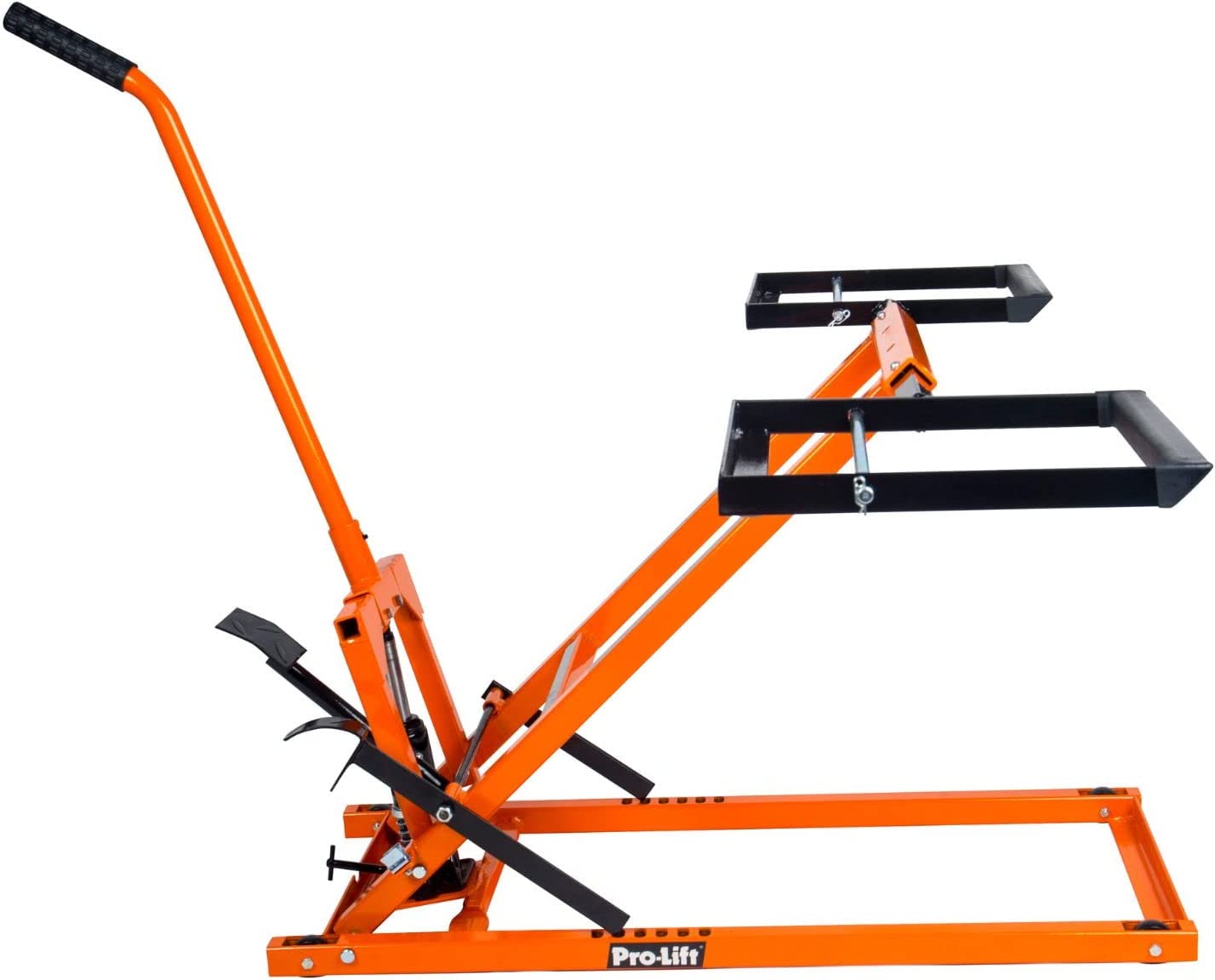

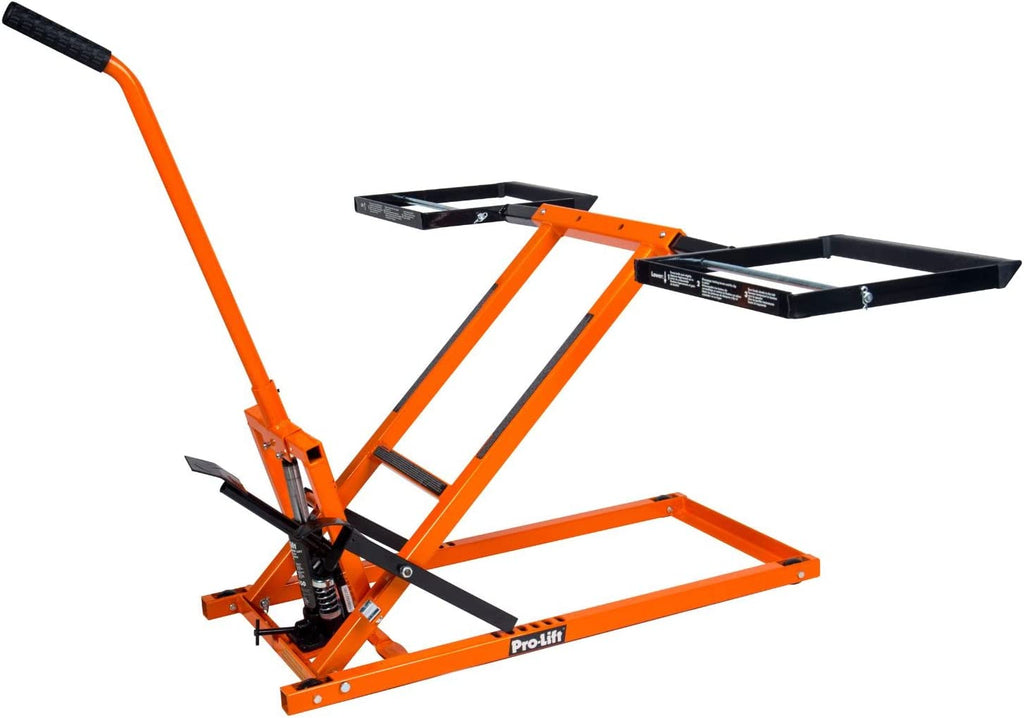

Pro-Lift Lawn Mower Lift - 350 lb. Capacity
Pro-Lift PL5350Q lawn mower lift has a 350 lb capacity and gives you the room and stability to work safely on lawn mowers in three easy steps. The PL5350Q lawn mower lift provides the ability to lift 23 inches from ground to wheel saddle to give you the maximum space to perform necessary mower maintenance.
It is built with welded solid steel construction with four steel wheels and positive dual locking safety latches, it also features the hydraulic foot pedal operation and it gives you the option to lift up your mower effortless.
Ability to lower the lift, the user can put the mower in neutral and raise the lift platform slightly to disengage height locking levers, then with the universal design.
Safety Lock Supporting the Load
Effortless Lifting the Load with Non-Slip Foot Pedal
Adjustable to Fit Wide Variety of Machines
Scratching Protection with Rubber Padded Platform
FEATURES
- Drive Mower Onto Wheel Baskets - Positions mower tire securely on wheel baskets centering the load on the lift.
- To Raise the Lift - Turn the release valve clockwise until firm resistance is felt. Carefully pumps jack until mower reaches desired height. Final height must correspond with the locking teeth on the Height Locking levers.
- Secure Locking Lever - Carefully turn the Release valve counter clockwise, slowly, until the Lift Platform locking levers engages the Height Locking Levers then close the release valve by turning it fully clockwise until firm resistance is felt.
-
To Lower the Lift - Pumps the lift Pedal several times to disengage the Height Locking Levers. Carefully turn the Release valve counter-clockwise, slowly, but no more than 1 turn from the closed position, to lower the load slow and safe.
SPECIFICATIONS
| Brand | Pro-Lift |
| Model | PL5350Q |
| Capacity | 350 lb |
| Lifting Height | 23 Inches |
| Product Dimensions | 44 x 18 x 9 inches |
| Item Weight | 55 lb |
| Wheel Span | 40-3/4 to 49-3/8 inches |
| Single Basket Width | 11.75 Inches |
| Country of Origin | China |
| Manufacturer Warranty | One Year |
